XT series
XT series
US$0.00

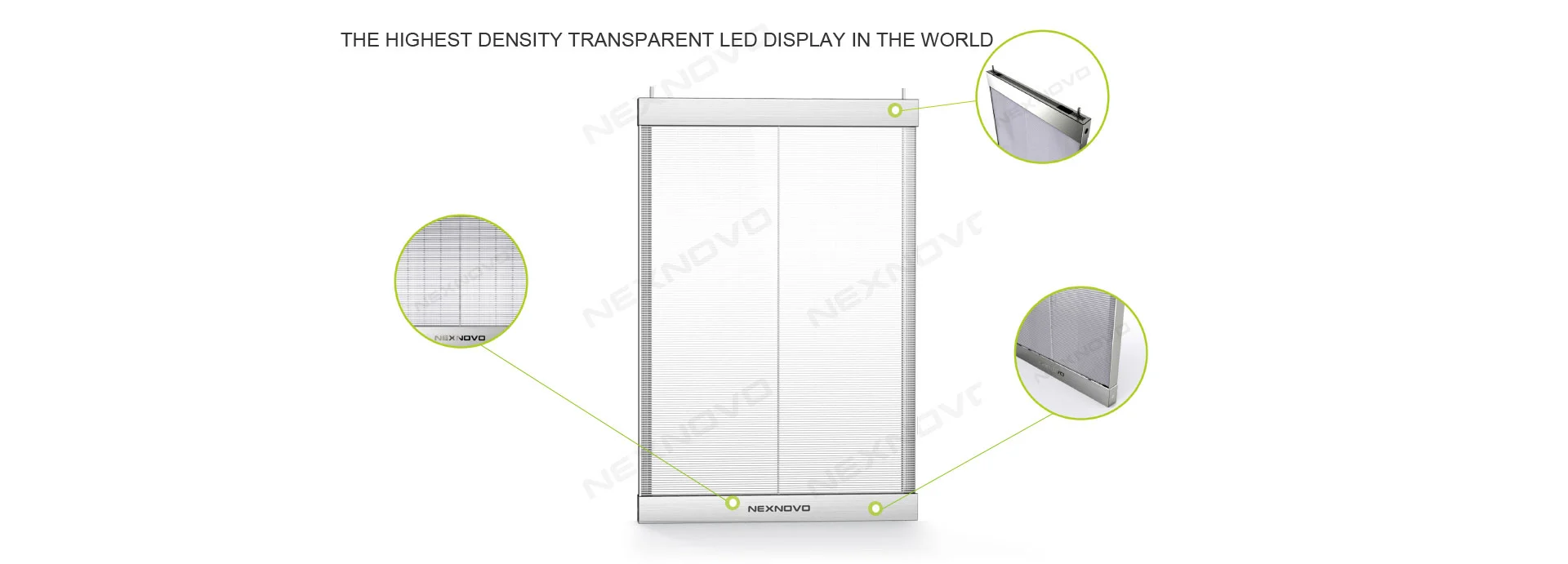

Transparent digital poster
The products of the XT Series are designed as a transparent digital poster and can be applied to variety of global transparent facade advertising, suitable for chain stores and retail shops.
Technical specifications
Model |
XT3S |
XT3M |
XT2L |
XT5L |
| Pixel（mm） | 3.33*6.66 | 3.13*6.66 | 2.5*5.71 | 5*5.71 |
| LED Model | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Brightness（nit） | ≥6000 | ≥6000 | ≥6000 | ≥6000 |
| Transparency | 68% | 68% | 64% | 64% |
| Display Size(W*H) | 640*852mm |
801*1067mm |
960*1280mm |
960*1280mm |
| Cabinet Dimension（W*H*L) | 657*1014*51mm |
817*1227*51mm |
977*1440*51mm |
977*1440*51mm |
| Module Resolution | 192*128 | 256*160 | 384*224 | 192*224 |
| Resolution（dot/m2） | 24576 | 40960 | 86016 | 43008 |
| Max.Power（w/m2） | 600 | 720 | 970 | 942 |
| Avg.Power（w/m2） | 180 | 210 | 290 | 270 |
| Ingress Protection | IP62 | IP62 | IP62 | IP62 |
| Input Power | AC100V-AC240V | AC100V-AC240V | AC100V-AC240V | AC100V-AC240V |
| Display Weight（kg/pcs） | 20 | 30 | 42 | 42 |
| Package Weigh | 28（61.73IB/set) | 41(90.39IB/set) | 54(119.05IB/set) | 54(119.05IB/set) |
| Package Size（W*H*L) | 1115*764*175mm 43.9"*30.1"*6.9" |
1380*875*175mm 54.3"*34.5"*6.9" |
1600*1160*170mm 63.0"*45.7"*7.0" |
1600*1160*170mm 63.0"*45.7"*7.0" |
| Working Temp（℃） | -10～40 | -10～40 | -10～40 | -10～40 |
